Fixation probabilities and Invasion diagram

In this notebook we analyse the Stochastic dynamics of (pairwise) social imitation under the small mutation limit (SML)

[1]:
import os
[2]:
import numpy as np
import matplotlib.pyplot as plt
import egttools as egt
%matplotlib inline
[3]:
egt.Random.init()
seed = egt.Random.current_seed()

Payoff matrix for a Normal Form Game

Here we will analyse a Normal Form game, so we need to first define a payoff matrix

[4]:
T=4; R=2; P=1; S=0
A = np.array([
    [P, T],
    [S, R]
])

Select which strategies we want to analyse

We can add all the strategies to a list and pass it to the Game object

[5]:
strategies = [egt.behaviors.NormalForm.TwoActions.Cooperator(),
              egt.behaviors.NormalForm.TwoActions.Defector(),
              egt.behaviors.NormalForm.TwoActions.TFT(),
              egt.behaviors.NormalForm.TwoActions.Pavlov(),
              egt.behaviors.NormalForm.TwoActions.Random(),
              egt.behaviors.NormalForm.TwoActions.GRIM()]
[6]:
strategy_labels = [strategy.type().replace("NFGStrategies::", '') for strategy in strategies]
[7]:
strategy_labels
[7]:
['AllC', 'AllD', 'TFT', 'Pavlov', 'Random', 'GRIM']

Instantiate the Normal Form Game

Now we can instanciate the Game and pass both the strategies and the payoff matrix

[8]:
game = egt.games.NormalFormGame(100, A, strategies)

Now we instanciate the StochDynamics class to perform analytical calculations

We pass the expected payoffs calculated by the NormalFormGame class

[9]:
Z= 100; beta=1
evolver = egt.analytical.PairwiseComparison(Z, game)
[10]:
transition_matrix,fixation_probabilities = evolver.calculate_transition_and_fixation_matrix_sml(beta)
stationary_distribution = egt.utils.calculate_stationary_distribution(transition_matrix.transpose())

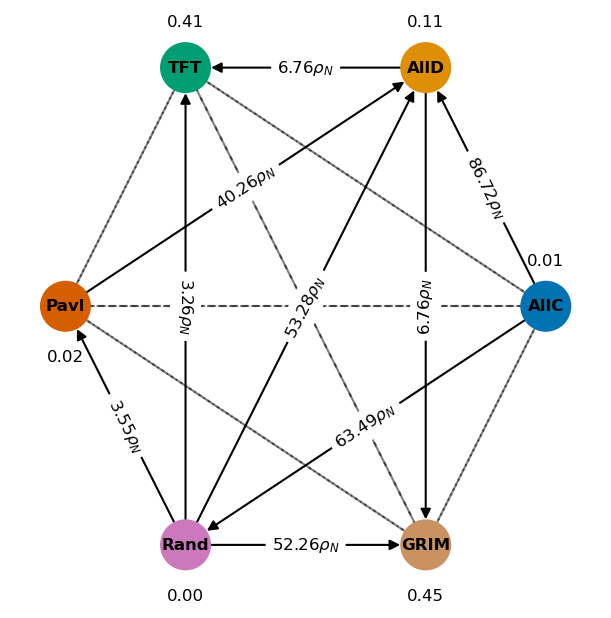

Plot invasion diagram

[ ]:
fig, ax = plt.subplots(figsize=(5, 5), dpi=150)
graph = egt.plotting.invasion_graph(fixation_probabilities, Z, stationary_distribution, strategy_labels,
                                    min_frequency=0.00001)
egt.plotting.draw_invasion_diagram(graph, ax=ax, node_size=600,
                                   label_kwargs={"fontsize": 8},
                                   ratio_label_kwargs={"fontsize": 7},
                                   frequency_label_kwargs={"fontsize": 7})
plt.show() # display
[ ]:
